pdf使用itext模版替换

牧歌2024/9/29...大约 4 分钟

pdf使用itext模版替换

文章作用概述

使用 itext 操作 pdf 进行模版替换。模版存放在 oss 上，需要将 oss 文件下载到服务器本地的临时文件，操作完文档将操作后的文档重新上传的 oss 上，将临时文件删除。

包含文档字符串替换和图片替换。这里图片章仅供学习替换图片使用，实际需要与 CFCA 或其他专业签章平台对接。

模版与替换效果展示

image.png|650

核心逻辑介绍

// 读取 PDF
OutputStream os = Files.newOutputStream(new File(outputFileUrl).toPath());
//读取pdf表单
reader = new PdfReader(pdfUrl);
//根据表单生成一个新的pdf文件
ps = new PdfStamper(reader, os);
//获取pdf表单
AcroFields form = ps.getAcroFields();

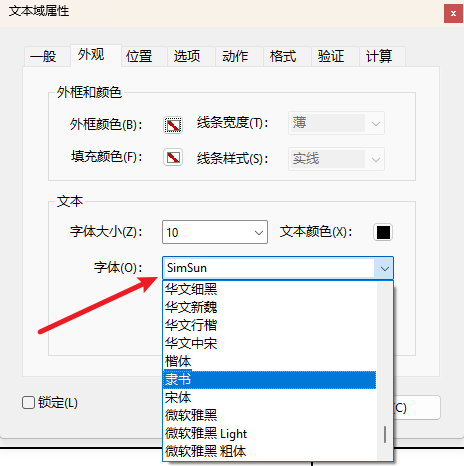

// 表单中配置了字体，替换可以放开注释
// BaseFont bf = BaseFont.createFont("STSong-Light", "UniGB-UCS2-H", false);
// form.addSubstitutionFont(bf);
if (null != templateValueMap && !templateValueMap.isEmpty()) {
	for (String key : templateValueMap.keySet()) {
		form.setField(key, String.valueOf(templateValueMap.get(key)));
	}
}
GeneratePdfUtil.insertImage(form, ps, "sign_img", imageUrl);
// 设置 true 后表单不可见
ps.setFormFlattening(true);

包导入

<!-- itext pdf -->
<dependency>
	<groupId>com.itextpdf</groupId>
	<artifactId>itextpdf</artifactId>
	<version>5.5.13</version>
</dependency>
<!-- PDF字体 -->
<dependency>
	<groupId>com.itextpdf</groupId>
	<artifactId>itext-asian</artifactId>
	<version>5.2.0</version>
</dependency>

替换文字和图片代码

/**
 * 获取得到签章的PDF的图片地址
 *
 * @param filePath  合同模板地址
 * @param imagePath 签章地址
 * @param dataMap   补充替换的数据
 * @return 签章的PDF的图片地址
 */
private String getChapterPdf(String filePath, String imagePath, Map<String, String> dataMap) {
	//生成的文件路径
	String outputUrl = null;
	File tempFile = null;
	try {
		outputUrl = ResourceUtils.getURL("classpath:").getPath() + "file" + System.currentTimeMillis() + ".pdf";
		tempFile = new File(outputUrl);
	} catch (FileNotFoundException e) {
		log.error("创建临时文件失败",e);
	}
	//文件不存在就创建
	FileUtil.touch(tempFile);
	//模板路径
	String pdfUrl = GeneratePdfUtil.getTempPdfUrl(filePath, true);
	File imageFile = GeneratePdfUtil.getTempImageUrl(imagePath);
	String result = pdfTemplateInsert(pdfUrl, outputUrl, dataMap, imageFile);
	return result;
}

/**
 * PDF模板插入字段插入图片
 * @param pdfUrl 模本临时地址
 * @param outputFileUrl 输出文件临时地址
 * @param templateValueMap 替换键值对
 * @param imageFile 图片文件地址
 * @return
 */
public String pdfTemplateInsert(String pdfUrl, String outputFileUrl, Map<String, String> templateValueMap,
									   File imageFile) {
	String imageUrl = imageFile.getAbsolutePath();
	boolean success = true;
	OutputStream os = null;
	PdfStamper ps = null;
	PdfReader reader = null;
	try {
		os = Files.newOutputStream(new File(outputFileUrl).toPath());
		//读取pdf表单
		reader = new PdfReader(pdfUrl);
		//根据表单生成一个新的pdf文件
		ps = new PdfStamper(reader, os);
		//获取pdf表单
		AcroFields form = ps.getAcroFields();
		// 表单中配置了字体，替换可以放开注释
//            BaseFont bf = BaseFont.createFont("STSong-Light", "UniGB-UCS2-H", false);
//            form.addSubstitutionFont(bf);
		if (null != templateValueMap && !templateValueMap.isEmpty()) {
			for (String key : templateValueMap.keySet()) {
				form.setField(key, String.valueOf(templateValueMap.get(key)));
			}
		}
		insertImage(form, ps, "sign_img", imageUrl);
		// 设置 true 后表单不可见
		ps.setFormFlattening(true);
	} catch (Exception e) {
		log.error("生成文件异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_FILE_GENERATE_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_FILE_GENERATE_ERROR.getCode());
	} finally {
		try {
			ps.close();
			reader.close();
			os.close();
		} catch (Exception e) {
			log.error("关闭异常", e);
			throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_FILE_CLOSE_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_FILE_CLOSE_ERROR.getCode());
		}
	}
	String ossName = "";
	if (success) {
		// 上传加密桶
		R<Map<String, String>> ossNameResult = componentOssFeign.encryptionUpload("order",
				FileUploadUtil.getMultipartFile(new File(outputFileUrl)));
		// 上传文件失败，删除缓存直接抛出异常
		if (ossNameResult == null || !ossNameResult.isSuccess() || ossNameResult.getData() == null
				|| !ossNameResult.getData().containsKey("fileName")
				|| StringUtils.isBlank(ossNameResult.getData().get("fileName"))) {
			imageFile.delete();
			new File(pdfUrl).delete();
			new File(outputFileUrl).delete();
			throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_FILE_UPLOAD_ERROR);
		}
		ossName = ossNameResult.getData().get("fileName");
	}
	imageFile.delete();
	new File(pdfUrl).delete();
	new File(outputFileUrl).delete();
	return ossName;
}

/**
* 插入图片
* @param form pdf表单
* @param stamper pdf模板对象
* @param filedName 图片字段名
* @param url 图片临时路径
*/
public static void insertImage(AcroFields form, PdfStamper stamper, String filedName, String url) {
	int pageNo = form.getFieldPositions(filedName).get(0).page;
	Rectangle signRect = form.getFieldPositions(filedName).get(0).position;
	float x = signRect.getLeft();
	float y = signRect.getBottom();

	Image image = null;
	try {
		image = Image.getInstance(url);
	} catch (BadElementException e) {
		log.error("获取签章图片实例异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_IMAGE_INSTANCE_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_IMAGE_INSTANCE_ERROR.getCode());
	} catch (IOException e) {
		log.error("获取签章图片流异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_IMAGE_STREAM_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_IMAGE_STREAM_ERROR.getCode());
	}
	// 获取操作的页面
	PdfContentByte under = stamper.getOverContent(pageNo);
	// 根据域的大小缩放图片
	image.scaleToFit(signRect.getWidth(), signRect.getHeight());
	// 添加图片
	image.setAbsolutePosition(x, y);
	try {
		under.addImage(image);
	} catch (DocumentException e) {
		log.error("添加签章异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_INSERT_IMAGE_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_INSERT_IMAGE_ERROR.getCode());
	}
}

/**
 * 将PDF下载到本地
 * @param oldPath OSS地址
 * @param isUrl 是否是URL
 * @return 临时文件路径
 */
public static String getTempPdfUrl(String oldPath, boolean isUrl) {
	GeneratePdfUtil.checkIsPdf(oldPath, isUrl);
	String suffix = oldPath.substring(oldPath.lastIndexOf("."));
	String pdfPath = null;
	File tempFile = null;
	try {
		pdfPath = ResourceUtils.getURL("classpath:").getPath() + "pdfLocal" + System.currentTimeMillis() + suffix;
		tempFile = new File(pdfPath);
	} catch (FileNotFoundException e) {
		log.error("生成PDF文件路径异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_CREATE_PDF_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_CREATE_PDF_ERROR.getCode());
	}
	//文件不存在就创建
	FileUtil.touch(tempFile);
	try {
		// 构造请求头
		URL url = new URL(oldPath);
		HttpURLConnection connection = (HttpURLConnection) url.openConnection();
		connection.setRequestMethod("GET");
		connection.setRequestProperty("Content-Type", "application/octet-stream");
		connection.setRequestProperty("Content-Disposition", "attachment;filename=123456.pdf");

		InputStream inputStream = connection.getInputStream();
		FileOutputStream outputStream = new FileOutputStream(pdfPath);
		byte[] buffer = new byte[1024];
		int length;
		while ((length = inputStream.read(buffer)) != -1) {
			outputStream.write(buffer, 0, length);
		}
		outputStream.close();
		inputStream.close();
		log.info("PDF文件下载完成！");
	} catch (IOException e) {
		log.error("下载PDF文件异常", e);
		throw new ServiceException(ErrorCodeOrderEnum.TRANSFER_DOWNLOAD_PDF_ERROR.getMsg(),ErrorCodeOrderEnum.TRANSFER_DOWNLOAD_PDF_ERROR.getCode());
	}
	log.info("生成新的pdf文件路径:{}", pdfPath);
	return pdfPath;
}
