Springboot整合Quartz数据库方式

牧歌2024/11/11...大约 8 分钟

Springboot整合Quartz数据库方式

引入依赖

<!-- 定时任务模块 -->
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-quartz</artifactId>
</dependency>

spring:
  quartz:
    job-store-type: jdbc #数据库方式
    jdbc:
      initialize-schema: never #不初始化表结构
    properties:
      org:
        quartz:
          scheduler:
            instanceId: AUTO #默认主机名和时间戳生成实例ID,可以是任何字符串，但对于所有调度程序来说，必须是唯一的 对应qrtz_scheduler_state INSTANCE_NAME字段
            #instanceName: clusteredScheduler #quartzScheduler
          jobStore:
            class: org.springframework.scheduling.quartz.LocalDataSourceJobStore # springboot>2.5.6后使用这个
            driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate #仅为数据库制作了特定于数据库的代理
            useProperties: false #以指示JDBCJobStore将JobDataMaps中的所有值都作为字符串，因此可以作为名称 - 值对存储而不是在BLOB列中以其序列化形式存储更多复杂的对象。从长远来看，这是更安全的，因为您避免了将非String类序列化为BLOB的类版本问题。
            tablePrefix: QRTZ_  #数据库表前缀
            misfireThreshold: 60000 #在被认为“失火”之前，调度程序将“容忍”一个Triggers将其下一个启动时间通过的毫秒数。默认值（如果您在配置中未输入此属性）为60000（60秒）。
            clusterCheckinInterval: 5000 #设置此实例“检入”*与群集的其他实例的频率（以毫秒为单位）。影响检测失败实例的速度。
            isClustered: true #打开群集功能
          threadPool: #连接池
            class: org.quartz.simpl.SimpleThreadPool
            threadCount: 10
            threadPriority: 5
            threadsInheritContextClassLoaderOfInitializingThread: true

创建数据库

解压quartz.jar包，sql脚本位置在org/quartz/impl/jdbcjobstore下，我这选择mysql数据库且使用innodb引擎，对应的脚本文件是tables_mysql_innodb.sql，共计11张表，这些表不需要我们做任何操作，是Quartz框架使用的。

集群节点相互之间不通信，而是通过定时任务持久化加锁的方式来实现集群。

image.png|550

1.qrtz_blob_triggers : 以Blob 类型存储的触发器。
2.qrtz_calendars：存放日历信息， quartz可配置一个日历来指定一个时间范围。
3.qrtz_cron_triggers：存放cron类型的触发器。
4.qrtz_fired_triggers：存放已触发的触发器。
5.qrtz_job_details：存放一个jobDetail信息。
6.qrtz_locks：存储程序的悲观锁的信息(假如使用了悲观锁)。
7.qrtz_paused_trigger_graps：存放暂停掉的触发器。

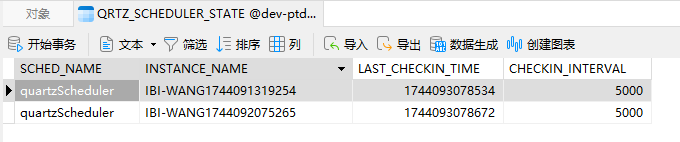

8.qrtz_scheduler_state：调度器状态。
9.qrtz_simple_triggers：简单触发器的信息。
10.qrtz_trigger_listeners：触发器监听器。
11.qrtz_triggers：触发器的基本信息。

实体

@Data
public class QuartzBean {

    private String id;

    private String jobName;

    private String jobGroup;

    private String jobDescription;

    private String jobClass;

    private String jobStatus;

    private Date startTime;

    private Integer interval;

    private Date endTime;

    private String cronExpression;

    private JobDataMap jobDataMap;
}

具体Job类

public class ExecuteTask extends QuartzJobBean {
    @Override
    protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        System.out.println("springboot-quartz-cluster-a" + ">>" + sdf.format(new Date()) + ":" + context.getJobDetail().getKey() + "执行中..." + context.getJobDetail().getDescription());
    }
}

Service


import com.ibi.common.exception.ServiceException;
import com.ibi.ptd.encyclopedia.core.task.model.QuartzBean;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.quartz.impl.matchers.GroupMatcher;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.ArrayList;
import java.util.List;

@Slf4j
@Service
public class QuartzJobService {

    @Resource
    private Scheduler scheduler;

    /**
     * 调度任务列表
     * @return
     */
    public List<QuartzBean> getScheduleJobList(){
        List<QuartzBean> list = new ArrayList<>();
        try {
            for(String groupJob: scheduler.getJobGroupNames()){
                for(JobKey jobKey: scheduler.getJobKeys(GroupMatcher.<JobKey>groupEquals(groupJob))){
                    List<? extends Trigger> triggers = scheduler.getTriggersOfJob(jobKey);
                    for (Trigger trigger: triggers) {
                        QuartzBean quartzBean = new QuartzBean();
                        Trigger.TriggerState triggerState = scheduler.getTriggerState(trigger.getKey());
                        JobDetail jobDetail = scheduler.getJobDetail(jobKey);
                        String cronExpression = "";
                        if (trigger instanceof CronTrigger) {
                            CronTrigger cronTrigger = (CronTrigger) trigger;
                            cronExpression = cronTrigger.getCronExpression();
                            quartzBean.setCron(cronExpression);
                        }
                        quartzBean.setStartTime(trigger.getStartTime());
                        quartzBean.setEndTime(trigger.getEndTime());
                        quartzBean.setJobName(jobKey.getName());
                        quartzBean.setJobGroup(jobKey.getGroup());
                        quartzBean.setJobDescription(jobDetail.getDescription());
                        quartzBean.setJobStatus(triggerState.name());
                        quartzBean.setJobClass(jobDetail.getJobClass().toGenericString());
                        quartzBean.setJobDataMap(jobDetail.getJobDataMap());
                        list.add(quartzBean);
                    }
                }
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
        return list;
    }


    /**
     * 创建简单调度任务
     * @param quartzBean
     * @throws Exception
     */
    public void createScheduleSimpleJob(QuartzBean quartzBean) {
        Class<? extends Job> jobClass = null;
        try {
            jobClass = (Class<? extends Job>) Class.forName(quartzBean.getJobClass());
        } catch (ClassNotFoundException e) {
            log.error("createScheduleSimpleJob无执行处理任务的容器：", e);
            throw new ServiceException("无执行处理任务的容器");
        }
        //job
        JobDetail jobDetail = JobBuilder.newJob(jobClass)
                .withIdentity(quartzBean.getJobName(), quartzBean.getJobGroup())
                .setJobData(quartzBean.getJobDataMap())
                .withDescription(quartzBean.getJobDescription())
                .build();
        //trigger
        Trigger trigger = null;
        //单次还是循环
        if (quartzBean.getInterval() == null) {
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                    .withSchedule(SimpleScheduleBuilder.simpleSchedule())
                    .startAt(quartzBean.getStartTime())
                    .build();
        } else {
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                    .withSchedule(SimpleScheduleBuilder.repeatSecondlyForever(quartzBean.getInterval()))
                    .startAt(quartzBean.getStartTime())
                    .endAt(quartzBean.getEndTime())
                    .build();
        }
        try {
            scheduler.scheduleJob(jobDetail, trigger);
        } catch (SchedulerException e) {
            log.error("createScheduleSimpleJob创建定时任务出错：", e);
            throw new ServiceException("创建定时任务出错");
        }
    }

    /**
     * 创建cron调度任务
     * @param quartzBean
     * @throws Exception
     */
    public void createScheduleCronJob(QuartzBean quartzBean) {
        Class<? extends Job> jobClass = null;
        try {
            jobClass = (Class<? extends Job>) Class.forName(quartzBean.getJobClass());
        } catch (ClassNotFoundException e) {
            log.error("createScheduleCronJob无执行处理任务的容器：", e);
            throw new ServiceException("无执行处理任务的容器");
        }
        // job
        JobDetail jobDetail = JobBuilder.newJob(jobClass)
                .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                .setJobData(quartzBean.getJobDataMap())
                .withDescription(quartzBean.getJobDescription())
                .build();
        // trigger
        CronTrigger trigger = TriggerBuilder.newTrigger()
                .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                .withSchedule(CronScheduleBuilder.cronSchedule(quartzBean.getCron()).withMisfireHandlingInstructionDoNothing())
                .build();
        try {
            scheduler.scheduleJob(jobDetail, trigger);
        } catch (SchedulerException e) {
            log.error("createScheduleCronJob创建定时任务出错：", e);
            throw new ServiceException("创建定时任务出错");
        }
    }

    /**
     * 暂停任务
     * @param jobName
     * @param jobGroup
     * @throws Exception
     */
    public void pauseScheduleJob(String jobName,String jobGroup) {
        JobKey jobKey = JobKey.jobKey(jobName,jobGroup);
        try {
            scheduler.pauseJob(jobKey);
        } catch (SchedulerException e) {
            throw new RuntimeException(e);
        }
    }

    /**
     * 立即执行任务
     * @param jobName
     * @param jobGroup
     * @throws Exception
     */
    public void runJob(String jobName,String jobGroup) {
        JobKey jobKey = JobKey.jobKey(jobName,jobGroup);
        try {
            scheduler.triggerJob(jobKey);
        } catch (SchedulerException e) {
            log.error("runJob执行任务出错：", e);
            throw new RuntimeException(e);
        }
    }

    /**
     * 更新简单任务
     * @param quartzBean
     * @throws Exception
     */
    public void updateScheduleSimpleJob(QuartzBean quartzBean){
        //原任务触发器
        TriggerKey triggerKey = TriggerKey.triggerKey(quartzBean.getJobName(), quartzBean.getJobGroup());
        //trigger
        Trigger trigger = null;
        //单次还是循环
        if (quartzBean.getInterval() == null) {
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                    .withSchedule(SimpleScheduleBuilder.simpleSchedule())
                    .startAt(quartzBean.getStartTime())
                    .build();
        } else {
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),quartzBean.getJobGroup())
                    .withSchedule(SimpleScheduleBuilder.repeatMinutelyForever(quartzBean.getInterval()))
                    .startAt(quartzBean.getStartTime())
                    .endAt(quartzBean.getEndTime())
                    .build();
        }
        //重置对应的job
        try {
            scheduler.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {
            log.error("updateScheduleSimpleJob更新定时任务出错：", e);
            throw new RuntimeException(e);
        }
    }

    /**
     * 创建or更新任务，存在则更新不存在创建
     *
     * @param jobClass     任务类
     * @param jobName      任务名称
     * @param jobGroupName 任务组名称
     * @param jobCron      cron表达式
     */
    public void addOrUpdateJob(Class<? extends QuartzJobBean> jobClass, String jobName, String jobGroupName,
                               String jobCron) {
        QuartzBean quartzBean = new QuartzBean();
        quartzBean.setJobClass("com.ibi.ptd.encyclopedia.core.task.execute.ExecuteTask");
        quartzBean.setJobName(jobName);
        quartzBean.setJobGroup(jobGroupName);
        quartzBean.setJobDescription(jobName);
        quartzBean.setCron(jobCron);
        JobDataMap map = new JobDataMap();
//        map.put("id", "1001");
        quartzBean.setJobDataMap(map);
        try {
            TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);
            CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);
            if (trigger == null) {
                createScheduleCronJob(quartzBean);
            } else {
                if (trigger.getCronExpression().equals(jobCron)) {
                    return;
                }
                updateScheduleCronJob(quartzBean);
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * 更新定时任务Cron
     * @param quartzBean 定时任务信息类
     * @throws SchedulerException
     */
    public void updateScheduleCronJob(QuartzBean quartzBean) {
        //原任务触发器
        TriggerKey triggerKey = TriggerKey.triggerKey(quartzBean.getJobName(), quartzBean.getJobGroup());
        // trigger
        CronTrigger trigger = TriggerBuilder.newTrigger()
                .withIdentity(quartzBean.getJobName(), quartzBean.getJobGroup())
                .withSchedule(CronScheduleBuilder.cronSchedule(quartzBean.getCron()))
                .build();
        //重置对应的job
        try {
            scheduler.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {
            log.error("updateScheduleCronJob更新定时任务出错：", e);
            throw new RuntimeException(e);
        }
    }

    /**
     * 删除定时任务
     * @param jobName
     * @param jobGroup
     * @throws Exception
     */
    public void deleteScheduleJob(String jobName,String jobGroup) {
        JobKey jobKey = JobKey.jobKey(jobName,jobGroup);
        try {
            scheduler.deleteJob(jobKey);
        } catch (SchedulerException e) {
            log.error("deleteScheduleJob删除定时任务出错：", e);
            throw new RuntimeException(e);
        }
    }

    /**
     * 获取任务状态
     * (" BLOCKED ", " 阻塞 ");
     * ("COMPLETE", "完成");
     * ("ERROR", "出错");
     * ("NONE", "不存在");
     * ("NORMAL", "正常");
     * ("PAUSED", "暂停");
     */
    public String getScheduleJobStatus(String jobName,String jobGroup){
        TriggerKey triggerKey = TriggerKey.triggerKey(jobName,jobGroup);
        Trigger.TriggerState state = null;
        try {
            state = scheduler.getTriggerState(triggerKey);
        } catch (SchedulerException e) {
            log.error("getScheduleJobStatus获取任务状态出错：", e);
            throw new RuntimeException(e);
        }
        return state.name();
    }

    /**
     * 检查任务是否存在
     * @param jobName
     * @param jobGroup
     * @return
     * @throws Exception
     */
    public Boolean checkExistsScheduleJob(String jobName,String jobGroup) {
        JobKey jobKey = JobKey.jobKey(jobName,jobGroup);
        try {
            return scheduler.checkExists(jobKey);
        } catch (SchedulerException e) {
            log.error("checkExistsScheduleJob检查任务是否存在出错：", e);
            throw new RuntimeException(e);
        }
    }

}

Controller


import cn.hutool.core.bean.BeanUtil;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.ibi.common.result.R;
import com.ibi.common.utils.StringUtils;
import com.ibi.ptd.encyclopedia.common.enums.EnumStatus;
import com.ibi.ptd.encyclopedia.core.domain.entity.EncyModelConfig;
import com.ibi.ptd.encyclopedia.core.service.IEncyModelConfigService;
import com.ibi.ptd.encyclopedia.core.task.execute.ExecuteTask;
import com.ibi.ptd.encyclopedia.core.task.model.QuartzBean;
import org.quartz.JobDataMap;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.Calendar;
import java.util.Date;
import java.util.List;

@RestController
@RequestMapping("/task")
public class QuartzJobController {

    @Autowired
    private IEncyModelConfigService iEncyModelConfigService;

    @Autowired
    private QuartzJobService quartzJobService;

    @GetMapping("get")
    public R<List<QuartzBean>> getQuartzList() {
        return R.ok(quartzJobService.getScheduleJobList());
    }

    @GetMapping("createSimpleJob")
    public R<String> createSimpleJob(String jobName, String jobGroup, String jobDescription) {
        QuartzBean quartzBean = new QuartzBean();
        quartzBean.setJobClass(ExecuteTask.class.getName());
        quartzBean.setJobName(jobName);
        // init 用的 null
        quartzBean.setJobGroup(jobGroup);
        quartzBean.setJobDescription(jobDescription);
        JobDataMap map = new JobDataMap();
        map.put("serviceId", "1001");
        quartzBean.setJobDataMap(map);
        // 保存10s中后开始，50s后结束，每隔3秒钟一次
        Calendar newTimeStart = Calendar.getInstance();
        newTimeStart.setTime(new Date());
        newTimeStart.add(Calendar.SECOND, 10);
        quartzBean.setStartTime(newTimeStart.getTime());

        Calendar newTimeEnd = Calendar.getInstance();
        newTimeEnd.setTime(new Date());
        newTimeEnd.add(Calendar.SECOND, 50);
        quartzBean.setStartTime(newTimeEnd.getTime());

        quartzBean.setInterval(3);
        quartzJobService.createScheduleSimpleJob(quartzBean);
        return R.ok("SUCCESS");
    }

    @GetMapping("/createCronJob")
    public R<String> createCronJob(String jobName, String jobGroup, String jobDescription) {
        QuartzBean quartzBean = new QuartzBean();
        quartzBean.setJobClass(ExecuteTask.class.getName());
        quartzBean.setJobName(jobName);
        quartzBean.setJobGroup(jobGroup);
        quartzBean.setJobDescription(jobDescription);
        quartzBean.setCron("*/10 * * * * ?");
        JobDataMap map = new JobDataMap();
        map.put("serviceId", "1001");
        quartzBean.setJobDataMap(map);
        quartzJobService.createScheduleCronJob(quartzBean);
        return R.ok("SUCCESS");
    }

    @GetMapping("/initSchedule")
    public R<Void> initSchedule() {
        LambdaQueryWrapper<EncyModelConfig> lqw = Wrappers.lambdaQuery();
        lqw.eq(EncyModelConfig::getAutoUpdate, 1);
        lqw.eq(EncyModelConfig::getStatus, EnumStatus.RUN.getIndex());
        lqw.isNotNull(EncyModelConfig::getTaskCron);
        // 从表里获取有效的 cron 并启动
        List<EncyModelConfig> modelConfigs = iEncyModelConfigService.list(lqw);
        for (EncyModelConfig config : modelConfigs) {
            if (StringUtils.isBlank(config.getTaskCron())) {
                continue;
            }

            QuartzBean quartzBean = new QuartzBean();
            // 定时任务处理的类
            quartzBean.setJobClass(ExecuteTask.class.getName());
            quartzBean.setJobName(config.getId().toString());
            quartzBean.setJobGroup(null);
            quartzBean.setJobDescription(config.getName());
            quartzBean.setCron(config.getTaskCron());
            JobDataMap map = new JobDataMap();
            map.putAll(BeanUtil.beanToMap(config));
            quartzBean.setJobDataMap(map);
            quartzJobService.createScheduleCronJob(quartzBean);
        }
        return R.ok();
    }


    @GetMapping(value = "/delete")
    public R<String> delete(String jobName, String jobGroup) {
        quartzJobService.deleteScheduleJob(jobName, jobGroup);
        return R.ok("SUCCESS");
    }

    @GetMapping(value = "check")
    public R<String> check(String jobName, String jobGroup) {
        if (quartzJobService.checkExistsScheduleJob(jobName, jobGroup)) {
            return R.ok("存在定时任务：" + jobName);
        } else {
            return R.fail("不存在定时任务：" + jobName);
        }
    }
}

使用效果

启动多个服务

image.png|550

QRTZ_SCHEDULER_STATE 表里有 2 条数据，每个 Scheduler 实例都在 QRTZ_SCHEDULER_STATE 表里有自己的唯一ID，例如以 hostname+time 标识；

image.png|550

添加任务

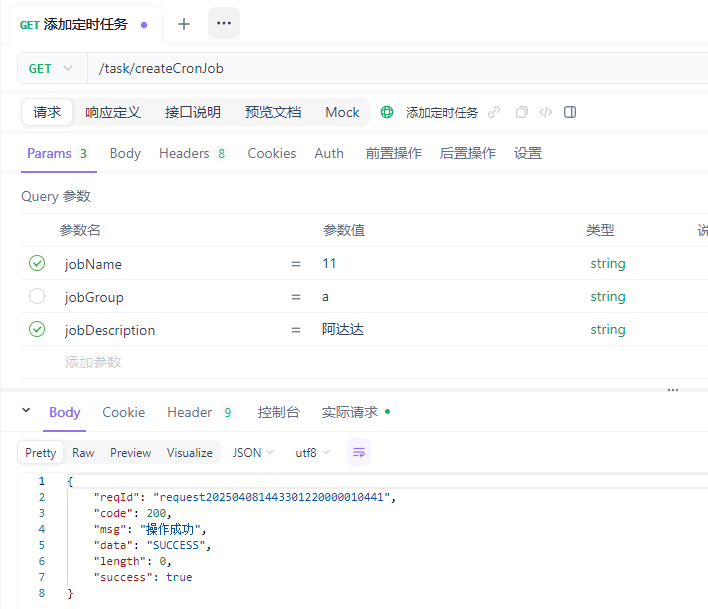

调用 /createCronJob 接口，创建一个 Cron 任务

image.png|550

QRTZ_CRON_TRIGGERS表里会添加一条数据

image.png|550

会看到有一个服务持续执行任务，停掉一个切换到另一服务，都停掉重新启动一个会从数据库中拉起任务执行。由此可知：

Quartz 定时任务集群服务调度，并不像其他中间件一样进行集群中不同实例之间的负载均衡，而是在其中一台上面持续执行；
一旦监测到有服务实例停止运行后，任务会切换至正常运行的服务实例上继续执行，这就实现了使得无论集群中有多少应用实例，定时任务只会触发一次这一效果，同时我们拥有了一个具备故障转移的分布式任务调度集群。

org.quartz.jobStore.class=org.quartz.impl.jdbcjobstore.JobStoreTX

解决方案：升级 spring-boot-starter-quartz > 2.5.6 的版本后将不再支持此方式进行配置默认数据源，需改为如下配置：

org.quartz.jobStore.class=org.springframework.scheduling.quartz.LocalDataSourceJobStore

参考文章：

SpringBoot定时任务 - 集成quartz实现定时任务（单实例和分布式两种方式)

搭建参考文章

Quartz分布式任务调度原理

这里展示了多个服务调度的逻辑

贡献者

wenleiwang

Springboot整合Quartz数据库方式

Springboot整合Quartz数据库方式

引入依赖

创建数据库

实体

具体Job类

Service

Controller

使用效果

启动多个服务

添加任务

删除任务

解决报错

org.quartz.SchedulerConfigException: DataSource name not set.

贡献者
